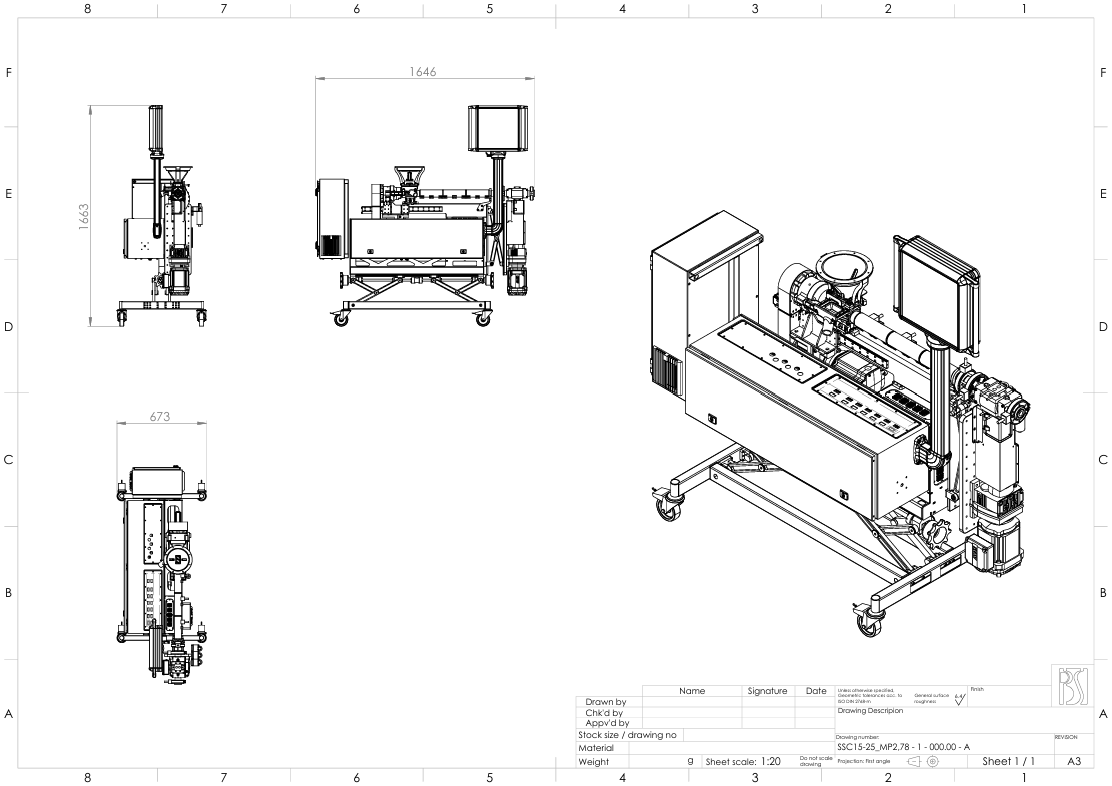

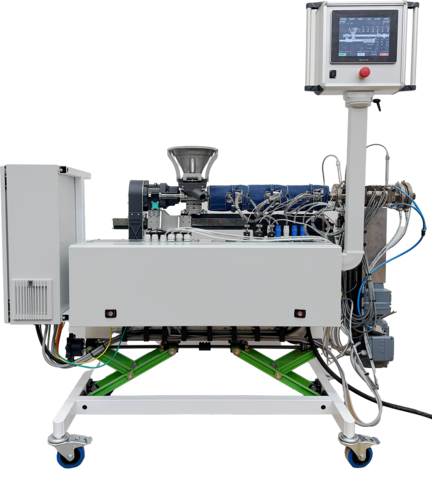

Introducing our first single screw / melt pump platform
Our single screw / melt pump platform is a high-performance extrusion solution for various applications. Designed for precision and versatility. The extruder comes equipped with a melt pump and is seamlessly controlled by the advanced “Flow-Connect” controller developed by flowlink.
Key Features
- Height-Adjustable Frame: The extruder package is mounted on a height-adjustable frame for easy implementation in various extrusion setups
- Horizontal tooling plate: The melt pump is mounted to an adjustable tooling plate to allow easy changeovers, cleaning, and maintenance tasks. This design enhances operational flexibility and convenience.
- Compact and Mobile: The entire extrusion system is designed to be compact and mobile, weighing less than 250 kg, making it highly adaptable for various setups and environments.
- Small size / High performance: Output flow up to 15 – 20 kg/hr, max. pump output pressure 350 Bar
Benefits of the Melt Pump:
The extruder feeds the melt pump at a operator defined inlet pressure while the pump controls the output flow of the extruder.
- Consistant plastification: The setup keeps the pump inlet pressure at a constant – user defined value to ensure a consistant melt quality.
- Consistent Pressure and Temperature: The pump cleans up the melt flow and compensates pressure fluctuatons.
- Increased Pressure Output: The integrated melt pump allows the setup to achieve an output pressure up to 350 bar.
Additional Advantages of the Melt Pump in Processing:
- Pulsation and swirl Reduction: The melt pump effectively compensates the pulsation and flow swirl caused by the extruder screw. This to ensure a smoother and more controlled extrusion process.
The Flexible Frame Design:
The horizontal adjustment feature of the frame offers flexibility for integrating various auxiliary equipment between the extruder and pump, including:
- Static mixers
- Breaker plates/filters (comes standard to protect the pump)
- Valves and restrictions
- Measuring equipment
Specifications
Options and pricing
Our first single screw / melt pump platform takes customization to the next level with its modular design. We understand that your requirements may vary, and that’s why we offer the flexibility to tailor the machine according to your specific needs and preferences. Custom screw design are available on request.
For enquiries and a quotation, contact us via the contact page by clicking the button below
